TXS0102YZPR Levels 2B Programmable Logic ICS Bidirec Voltage Level Translator

ChongMing Group (HK) Int'l Co., Ltd
Contact Now

TXS0102YZPR Levels 2B Programmable Logic ICS Bidirec Voltage Level Translator

Brand Name : TI

Model Number : TXS0102YZPR

MOQ : Contact us

Price : Contact us

Payment Terms : Paypal, Western Union, TT

Supply Ability : 50000 Pieces per Day

Delivery Time : The goods will be shipped within 3 days once received fund

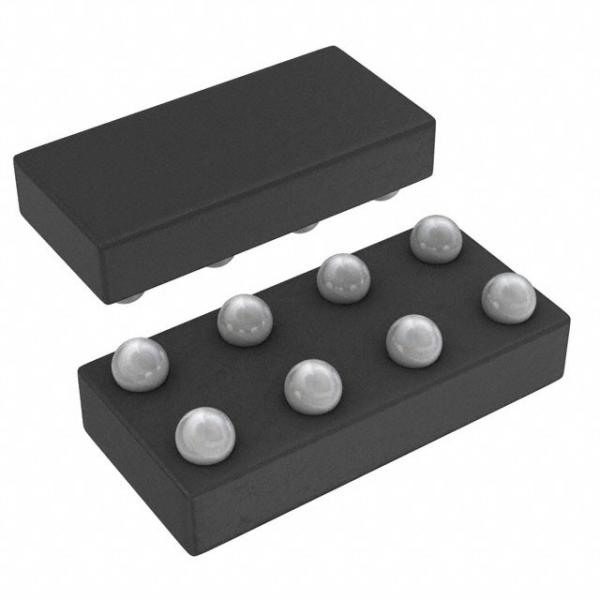

Packaging Details : DSBGA-8

Description : Voltage Level Translator Bidirectional 1 Circuit 2 Channel 24Mbps 8-DSBGA (1.9x0.9)

Supply Voltage - Min : 1.65 V

Supply Voltage - Max : 3.6 V

Minimum Operating Temperature : - 40 C

Maximum Operating Temperature : + 85 C

Logic Type : True

Product Type : Translation - Voltage Levels

Contact Now

TXS0102YZPR Programmable Logic ICS Voltage Levels 2B Bidirec Vltg- Level Translator

1 Features

  • No Direction-Control Signal Needed
  • Maximum Data Rates
  • – 24 Mbps (Push Pull)
  • – 2 Mbps (Open Drain)
  • Available in the Texas Instruments NanoStarTM Package
  • 1.65Vto3.6VonAPortand2.3Vto5.5VonB Port (VCCA ≤ VCCB)
  • VCC Isolation Feature: If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State
  • No Power-Supply Sequencing Required: Either VCCA or VCCB Can Be Ramped First
  • Ioff Supports Partial-Power-Down Mode Operation
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

2 Applications

  • I2C / SMBus

  • UART

  • GPIO

3 Description

This two-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power- supply rails, with the A ports supporting operating voltages from 1.65 V to 3.6 V while it tracks the VCCA supply, and the B ports supporting operating voltages from 2.3 V to 5.5 V while it tracks the VCCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.

When the output-enable (OE) input is low, all I/Os are placed in the high-impedance state, which significantly reduces the power-supply quiescent current consumption.

To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

Device Information

PART NUMBER

PACKAGE

BODY SIZE (NOM)

TXS0102DCT

SSOP (8)

2.95 mm × 2.80 mm

TXS0102DCU

VSSOP (8)

2.30 mm × 2.00 mm

TXS0102DQE

X2SON (8)

1.40 mm × 1.00 mm

TXS0102DQM

X2SON (8)

1.80 mm × 1.20 mm

TXS0102YZP

DSBGA (8)

1.90 mm × 0.90 mm
