BQ24123RHLR BQ24130RHLR Power Path Management IC Battery Management synch Sw-Mode 2-cell Li-Ion Charger

ChongMing Group (HK) Int'l Co., Ltd
Contact Now

BQ24123RHLR BQ24130RHLR Power Path Management IC Battery Management synch Sw-Mode 2-cell Li-Ion Charger

Brand Name : TI

Model Number : BQ24123RHLR

MOQ : Contact us

Price : Contact us

Payment Terms : Paypal, Western Union, TT

Supply Ability : 50000 Pieces per Day

Delivery Time : The goods will be shipped within 3 days once received fund

Packaging Details : QFN20

Description : Charger IC Lithium Ion/Polymer 20-VQFN (3.5x4.5)

Output Voltage : 4.2 V

LeCM GROUPh : 4.5 mm

Output Current : 2 A

Height : 0.9 mm

Width : 3.5 mm

Unit Weight : 0.001668 oz

Contact Now

BQ24123RHLR BQ24130RHLR Power Path Management IC Battery Management synch Sw-Mode 2-cell Li-Ion Charger

1 Features

  • Enhanced EMI Performance
  • Integrated Power FETs For Up To 2-A Charge Rate

  • Suitable For 1-, 2-, or 3-Cell Li-Ion and Li-Polymer Battery Packs

  • Synchronous Fixed-Frequency PWM Controller Operating at 1.1 MHz With 0% to 100% Duty Cycle

  • High-Accuracy Voltage and Current Regulation

  • Status Outputs For LED or Host Processor Interface Indicates Charge-In-Progress, Charge Completion, Fault, and AC-Adapter Present Conditions

  • 20-V Absolute Maximum Voltage Rating on IN and OUT Pins

  • Accurate High-Side Battery Current Sensing

  • Battery Temperature Monitoring

  • Automatic Sleep Mode for Low Power Consumption

  • Reverse Leakage Protection Prevents Battery Drainage

  • Thermal Shutdown and Protection

  • Built-In Battery Detection

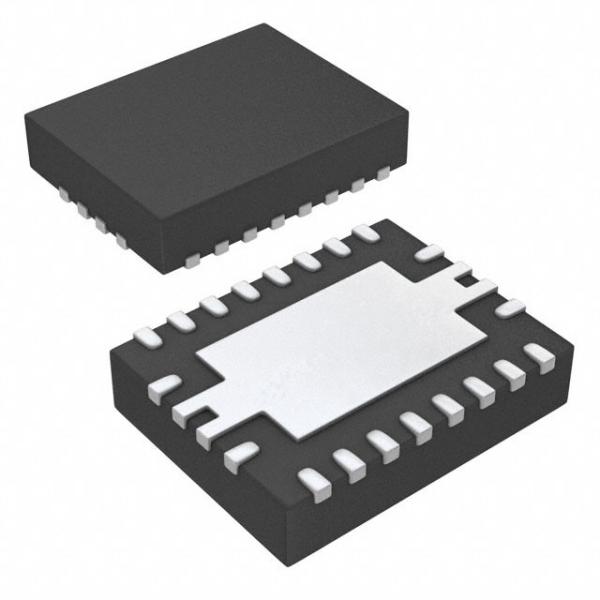

  • Available in 20-pin 3.5-mm × 4.5-mm VQFN Package

2 Applications

• Handheld Products
• Portable Media Players
• Industrial and Medical Equipment

• Portable Equipment
• Portable DVD Players

3 Description

The bqSWITCHERTM series are highly integrated Li- ion and Li-polymer switched-mode charge management devices targeted at a wide range of portable applications. The bqSWITCHERTM series offers integrated synchronous PWM controller and power FETs, high-accuracy current and voltage regulation, charge preconditioning, charge status, and charge termination, in a small, thermally enhanced QFN package.

The bqSWITCHER charges the battery in three phases: conditioning, constant current, and constant voltage. Charge is terminated based on user- selectable minimum current level. A programmable charge timer provides a safety backup for charge termination. The bqSWITCHER automatically restarts the charge cycle if the battery voltage falls below an internal threshold. The bqSWITCHER automatically enters sleep mode when VCC supply is removed.

Device Information

PART NUMBER

PACKAGE

BODY SIZE (NOM)

bq2412x

VQFN (20)

3.50 mm × 4.50 mm
