FAST RECOVERY RECTIFIERS
REVERSE VOLTAGE - 50 to 1000 Volts
FORWARD CURRENT - 1.0 Ampere
FEATURES
● Fast switching for high efficiency
● Low cost
● Diffused junction
● Low reverse leakage current
● Low forward voltage drop
● High current capability
● The plastic material carries UL recognition 94V-0
MECHANICAL DATA
●Case: JEDEC DO-41 molded plastic
●Polarity: Color band denotes cathode
●Weight: 0.012 ounces , 0.34 grams
●Mounting position: Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave ,60Hz, resistive or inductive load. For capacitive load, derate current by 20%
| CHARACTERISTICS |
SYMBOL |
FR101 |
FR102 |
FR103 |
FR104 |
FR105 |
FR106 |
FR107 |
UNIT |
| Maximum Recurrent Peak Reverse Voltage |
VRRM |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
| Maximum RMS Voltage |
VRMS |
35 |
70 |
140 |
280 |
420 |
560 |
700 |
V |
| Maximum DC Blocking Voltage |
VDC |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
|
Maximum Average Forward
Rectified Current @TA=75 ℃
|
I(AV) |
1.0 |
A |
|
Peak Forward Surge Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load(JEDEC Method)
|
IFSM |
30 |
A |
| Peak Forward Voltage at 1.0A DC |
VF |
1.3 |
V |
|
Maximum DC Reverse Current @TJ=25℃
at Rated DC Blocking Voltage @TJ=100℃
|
IR |
5.0
100
|
μA |
| Maximum Reverse Recovery Time (Note 1) |
Trr |
150 |
250 |
500 |
nS |
| Typical Junction Capacitance (Note2) |
CJ |
25 |
15 |
pF |
| Typical Thermal Resistance (Note3) |
RθJA |
25 |
℃/W |
| Operating Temperature Range |
TJ |
-55 to +125 |
℃ |
| Storage Temperature Range |
TSTG |
-55 to +150 |
℃ |
NOTES: 1.Measured with IF=0.5A,IR=1A,IRR=0.25A
2.Measured at 1.0 MHz and applied reverse voltage of 4.0V DC
3.Thermal resistance junction to ambient.

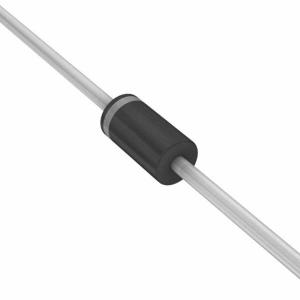

DO- 41
