SK34SMA 3A SMD Schottky Barrier Rectifier Diodes DO - 214AC

Name: SK34SMA 3A SMD Schottky Barrier Rectifier Diodes DO 214AC
Brand: DIOTEC
Price: 1 USD

Brand Name : DIOTEC

Model Number : SK34SMA

Certification : CE/ RoHS

Place of Origin : Germany

MOQ : 10pcs

Price : To be negotiated

Payment Terms : T/T, Western Union ,paypal

Supply Ability : 10,000PCS

Delivery Time : in stock 2-3days

Packaging Details : 2000pcs/reel

Description : Diode 40 V 3A Surface Mount DO-214AC, SMA

PN : SK34SMA

Package : SMA / DO-214AC

Original : Germany

Current : 3A

Weight approx. : 0.07 g

Contact Now

Surface Mount Schottky - Rectifiers SMD Schottky Barrier Rectifier Diodes 3rd Generation

Features:

Nominal current – Nennstrom 3 A

Repetitive peak reverse voltage 20…100 V

Periodische Spitzensperrspannung

Plastic case ~ SMA

Kunststoffgehäuse ~ DO-214AC

Weight approx. – Gewicht ca. 0.07 g

Plastic material has UL classification 94V-0

Gehäusematerial UL94V-0 klassifiziert

Details:

Max. average forward rectified current, R-load TT = 100/C IFAV : 3 A

Dauergrenzstrom in Einwegschaltung mit R-Last

Repetitive peak forward current f > 15 Hz IFRM : 20 A 2)

Periodischer Spitzenstrom

Peak forward surge current, 50 / 60 Hz half sine-wave TA = 25/C IFSM: 80 / 90 A

Stoßstrom für eine 50 / 60 Hz Sinus-Halbwelle

Rating for fusing, t < 10 ms TA = 25/C i2 t 32 A2s

Grenzlastintegral, t < 10 ms

Leakage current – Sperrstrom Tj = 25/C VR = VRRM: IR< 80 :A

Tj = 100/C VR = VRRM, IR < 10.0 mA

Thermal resistance junction to ambient air RthA < 70 K/W 1)

Wärmewiderstand Sperrschicht – umgebende Luft

Thermal resistance junction to terminal RthT < 20 K/W

Wärmewiderstand Sperrschicht – Anschluß

Operating junction temperature – Sperrschichttemperatur Tj: – 50...+150/C

Storage temperature – Lagerungstemperatur TS : – 50...+150/C

Mounted on P.C. board with 50 mm2 copper pads at each terminal

Montage auf Leiterplatte mit 50 mm2 Kupferbelag (Lötpad) an jedem Anschluß2

Product Tags:

SMD Schottky Barrier Rectifier Diodes

3A Schottky Barrier Rectifier Diodes

SK34SMA Surface Mount Schottky Rectifiers

Wholesale SK34SMA 3A SMD Schottky Barrier Rectifier Diodes DO - 214AC from china suppliers

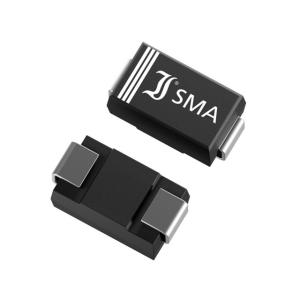

SK34SMA 3A SMD Schottky Barrier Rectifier Diodes DO - 214AC Images
